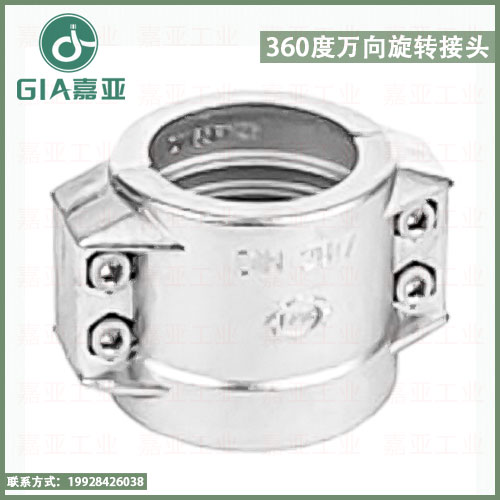

符合EN14420/DIN 2817标准，由两片SS316卡箍，4个螺栓固定而成，方便用户自行裁剪软管和组装接头。也可提供铝合金材质。
?
?
| Material | Size | Hose OD | Size | Bolt Thread | Weight | |
| mm | Height | Width | Kg/pcs | |||
| ? | mm | mm | ? | |||
| SS316 | 13 x 5 | 22-24 | 50 | 51 | M6 | 0.25 |
| SS316 | 19 x 6 | 30-33 | 50 | 63 | M6 | 0.30 |
| SS316 | 25 x 6 | 36-39 | 50 | 69 | M6 | 0.33 |
| SS316 | 32 x 6 | 43-46 | 50 | 76 | M6 | 0.37 |
| SS316 | 38 x 6.5 | 50-53 | 50 | 83 | M6 | 0.41 |
| SS316 | 50 x 8 | 63-67 | 56 | 102 | M8 | 0.69 |
| SS316 | 63 x 8 | 78-82 | 74 | 120 | M8 | 1.06 |
| SS316 | 75 x 8 | 89-93 | 76 | 132 | M8 | 1.20 |
| SS316 | 100 x 8 | 114-119 | 120 | 166 | M10 | 2.90 |
